Set Link Switch

3 Port Gigabit Ethernet Switch for Camera Rigs

A 42 g gigabit switch that lives on camera. Three ethernet ports, 2-pin power from 5–36V, and 65 × 45 × 20 mm so it disappears next to a transmitter or behind a battery plate.

Specifications

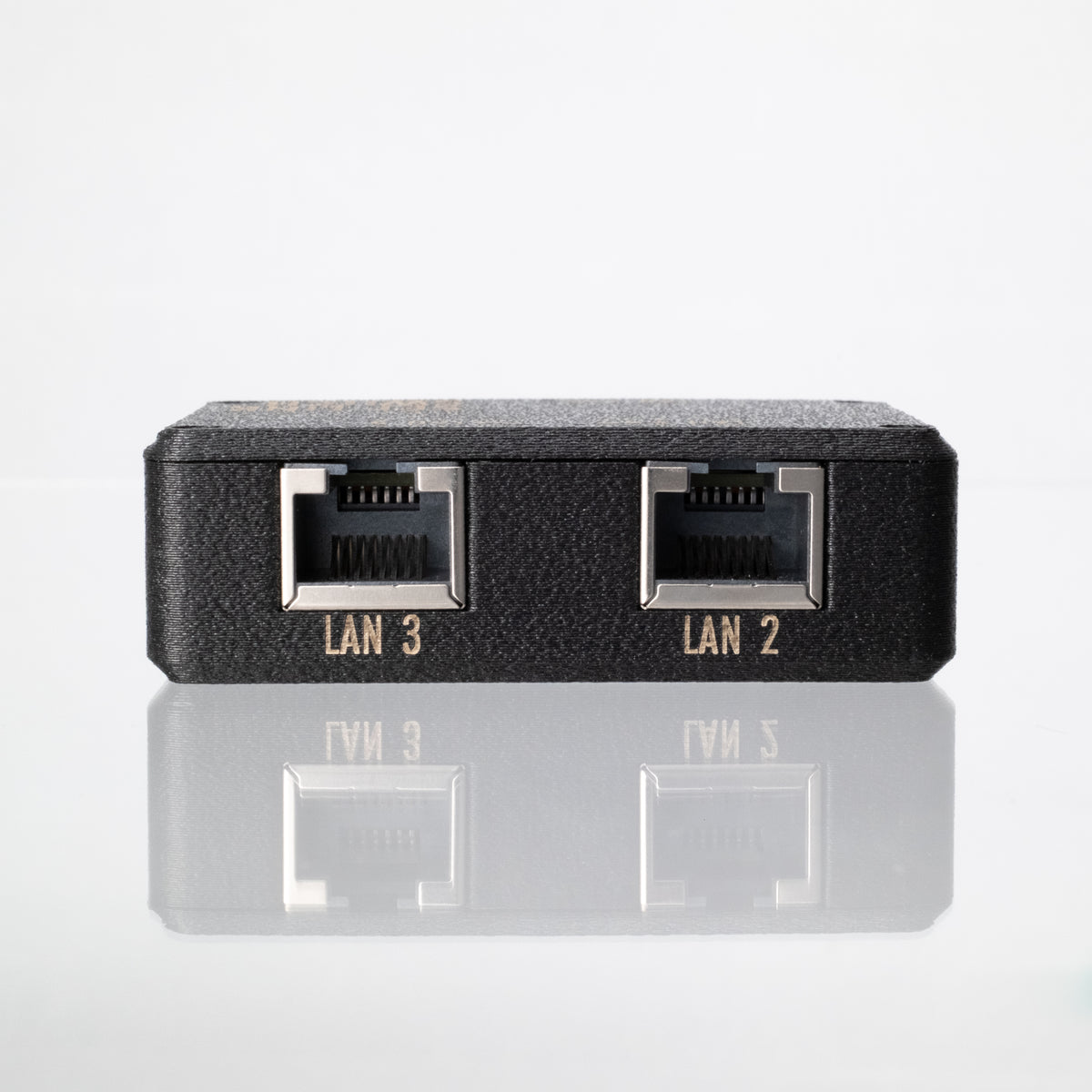

Ethernet: 3× shielded RJ45, 10/100/1000 Mbps, unmanaged.

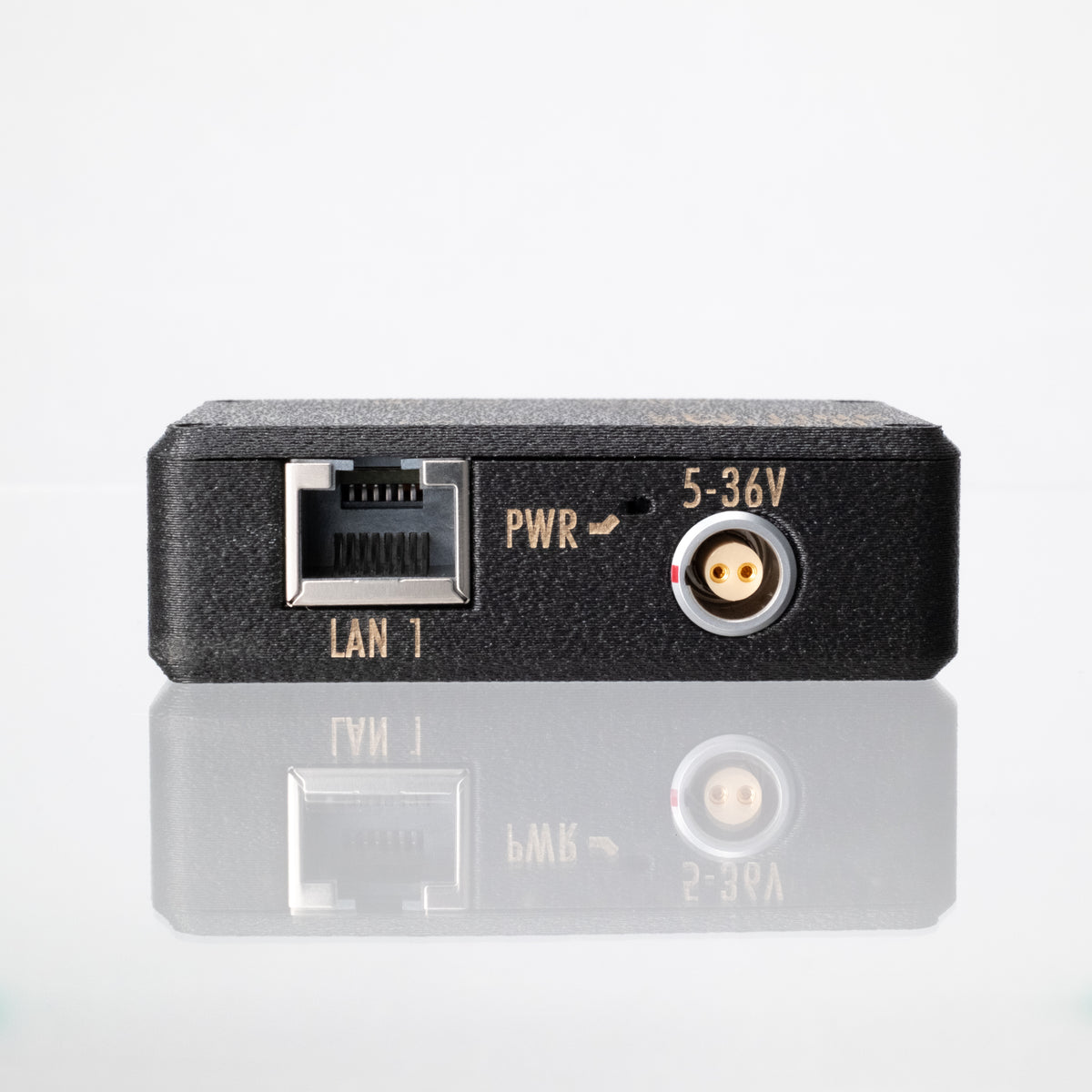

Power: 2-pin 0B LEMO-compatible, 5–36V, reverse-polarity protected
Consumption: 1.6 W max (three links at 1 Gbps)
Enclosure: glass-fibre reinforcred ABS. Non-conductive, so no galvanic contact or short risk against the rig
Mounting: Via velcro / Dual lock
Size / weight: 65 × 45 × 20 mm, 42 g

What it's for

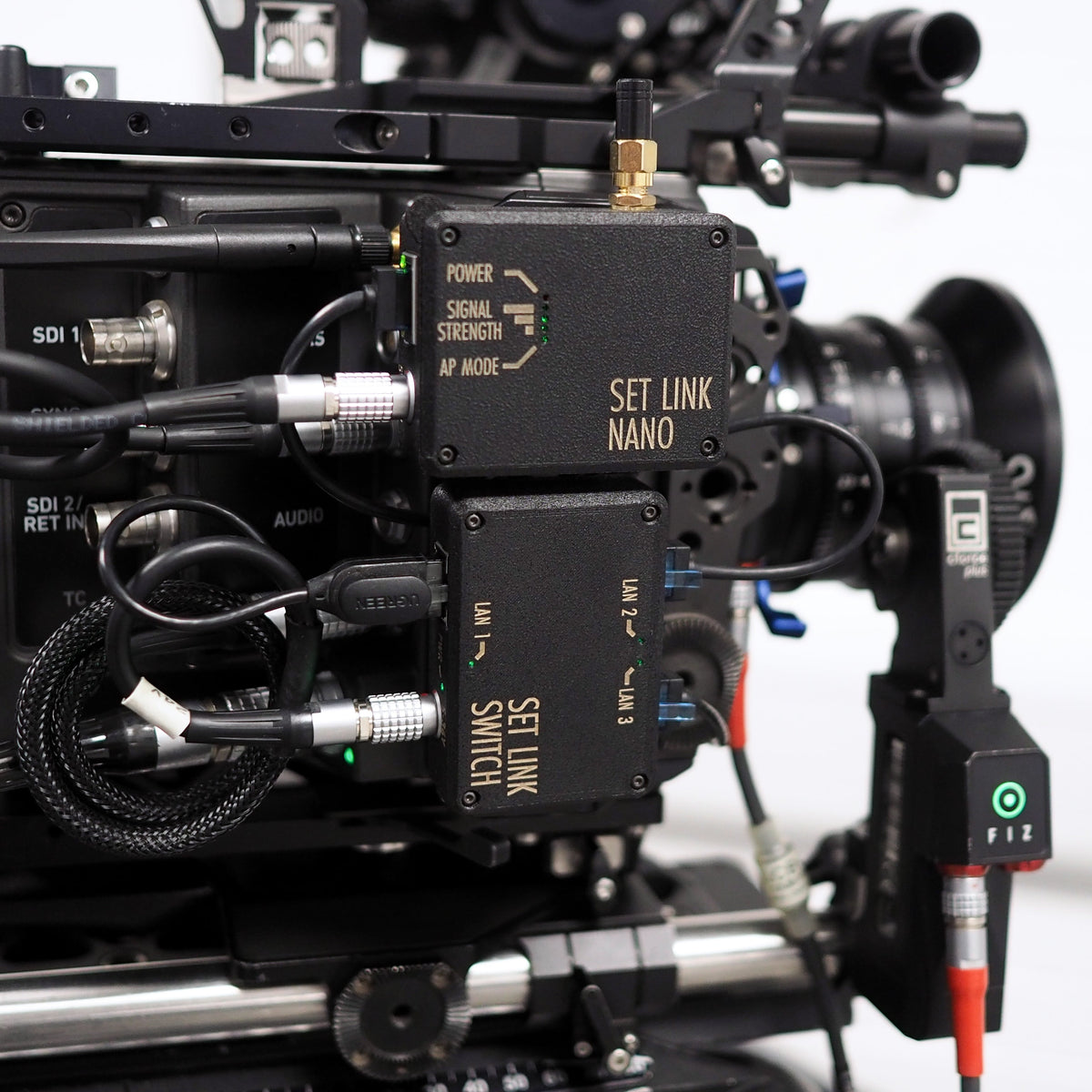

• Camera control via an on-camera SmallHD monitor and a Set Link Nano at the same time.
• Adding a tally receiver or LBUS-to-Ethernet converter to a Nano without losing camera control
• Remote camera control via Set Link Nano + SmallHD in monitor Livegrading for live look preview on camera.

• Any point on the rig where one Ethernet cable needs to feed two devices

Good to know

No PoE, in or out. Connected devices need their own power.
Not weather sealed.

2 years warranty.
